Tiling a Bathtub Surround: The Pretty Part is Easy, the Wall Behind It Isn't

Nick PapazovOwner and installer, MCode LLC

August 13, 2026

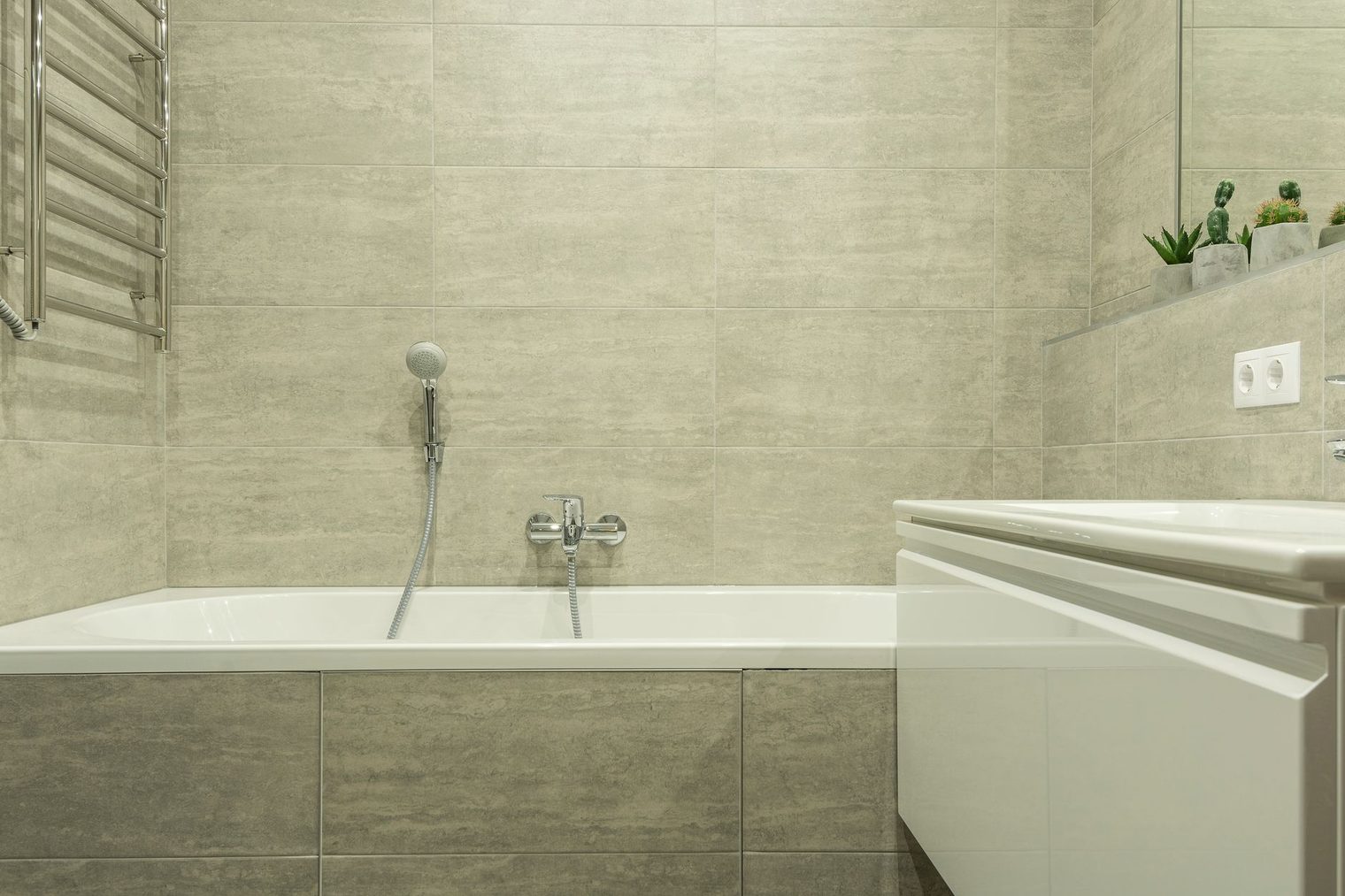

Large format tile bathtub surround with a tiled tub apron in a modern bathroom — Photo by Max Vakhtbovych on Pexels

Tiling a bathtub is one of those jobs where the good-looking part is the easy 20 percent, and the part that decides whether your downstairs ceiling stays dry is the invisible 80 percent nobody photographs. (Guess which one gets skipped when a job is rushed.) I am Nick, I have set tile across the DMV since 2006, and a tub surround gets hit from two directions, the shower spraying the walls from above and the bath water sitting right below it, so water has two different ways to sneak in. Here is how to tile around a tub so it looks sharp and, more to the point, so it stays exactly where it belongs.

A tub surround is a wet wall, so waterproofing comes first

Start behind the tile, because that is where a tub surround lives or dies. The three walls around a tub get soaked every single day, and water is patient. If it can find a way behind the tile it will, and then it just sits in the wall, soaking the framing until something rots or the downstairs ceiling grows a stain in the shape of your bad day.

Here is my one strong opinion for this post: cement board is water-durable, not waterproof, and treating it as the waterproofing is the most expensive mistake in a bathroom. Water passes straight through cement board and through every screw hole in it. It is a great backer to stick tile to and a terrible last line of defense against water. That is exactly why bonded waterproof membranes exist and meet ANSI A118.10. We run one over the whole surround, seal every corner, and then tile. Skip that and the tile can be flawless while the wall behind it quietly turns to mush.

The bottom tile does not touch the tub, and here is why

This one detail separates a tub that stays sealed from one that cracks within a year. The bottom row of tile does not sit down on the tub. It hangs just above it, lapping over the tub flange, which is the lip along the tub's top edge that the wall tile covers. The gap left between the tile and the tub then gets filled with flexible silicone, not grout.

The reason is movement. A tub flexes. Empty, it sits high. Fill it with water and a person and it drops a hair, then springs back when it drains. Grout is rigid and cannot ride that, so a grouted tub-to-tile joint cracks, and the crack feeds water straight into the wall. Silicone flexes with the tub and holds the seal. The TCNA Handbook has called for a flexible joint wherever tile meets the tub for years, and it is the single most common corner people cut. (If you spot a hard grout line where tile meets tub, that job was in a hurry.)

Laying it out so you are not left with a sliver at the ceiling

With the wet stuff sorted, layout is what makes a surround look designed instead of default. The goal is to dodge a thin sliver of tile in an obvious spot, like a half-inch strip along the ceiling or a needle-thin cut jammed next to the valve. So we dry-lay the tile first, center the pattern on the main wall, and push the awkward cuts down to the bottom and out to the corners where nobody looks.

We plan around the real-world things on a tub wall too: the valve, the spout, the niche if you want one, and a grab bar if there is one. All of that gets mapped before a single tile is cut, so nothing ends up as a tiny, ugly wedge wrapped around a fixture. It is an hour of boring planning that saves the whole wall from looking slightly off in a way you can never quite unsee.

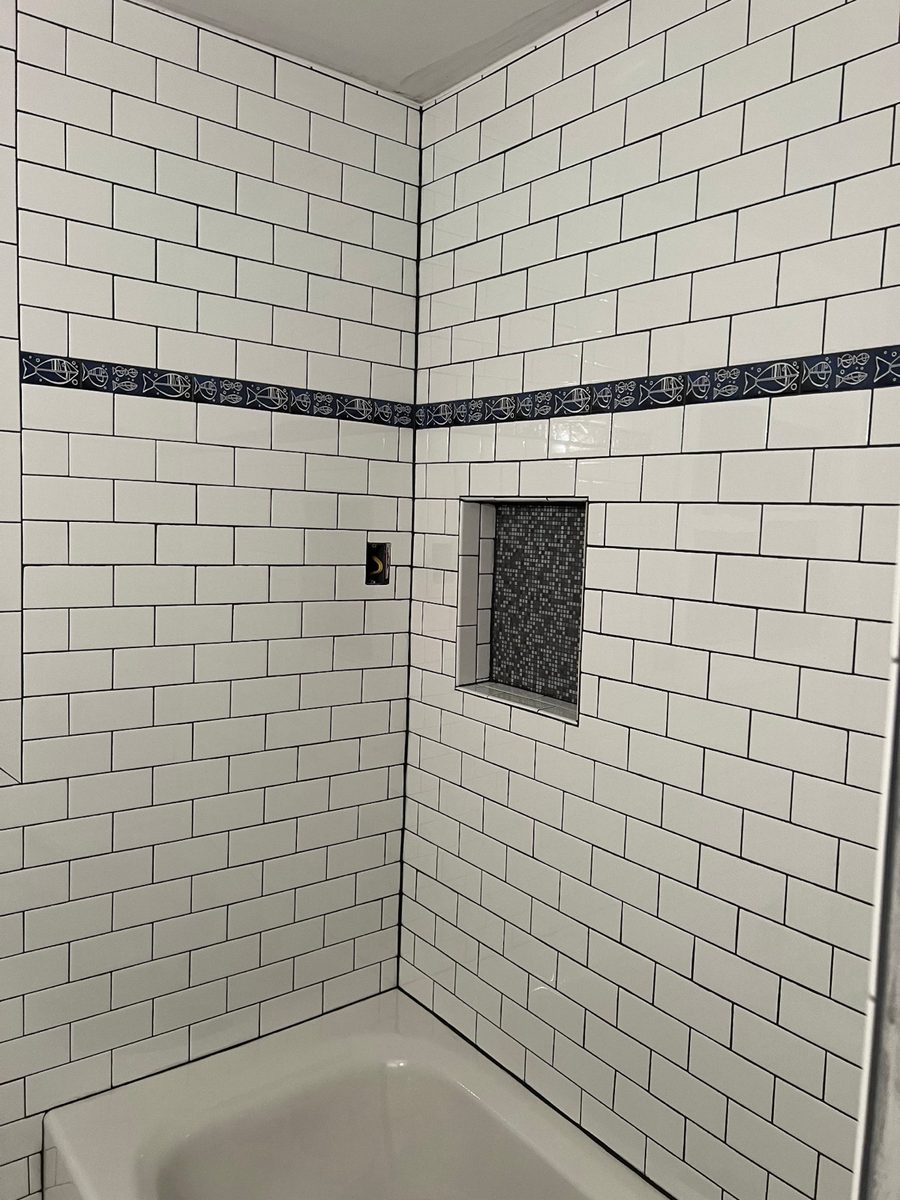

White subway tile bathtub surround with a mosaic accent band by MCode

Picking tile for a tub surround: subway, marble, or big format

The tile itself is the fun part, and a tub surround is friendly to almost anything. Classic white subway is the safe, timeless pick, and cheap to boot. Big format tile means fewer grout lines and a calmer, more modern wall. Marble and other natural stone look incredible around a tub, with one asterisk: stone is porous and wants sealing, so it asks for a bit more care over the years.

Whatever the look, I lean toward porcelain on a wet wall when the style allows, because porcelain absorbs 0.5% water or less (ANSI A137.1), so the tile itself never becomes part of the problem. Coverage matters in a wet area too. ANSI A108.5 calls for 95% of the back of each tile to be stuck down, because a hollow spot behind tile in a tub surround is just a little reservoir waiting to happen. So the tile gets fully bedded, not dabbed on the four corners and hoped for.

Marble tile bathtub surround with a hexagon mosaic niche by MCode

Tiling the apron: the front of the tub, and a nice touch

One optional upgrade people fall for the moment they see it: tiling the front of the tub, the apron, instead of leaving the builder's flat plastic panel. It turns a basic drop-in tub into something that looks built-in and custom, and it ties the tub into the rest of the tiled room instead of interrupting it.

It is not right for every tub. A standard alcove tub often has a removable panel there so someone can reach the plumbing behind it, so we either leave a proper access point or tile a panel that comes off cleanly. Done with a plan, a tiled apron is the detail that makes people ask who did your bathroom. Done without one, it is the reason your nice new tile has to get smashed to reach a valve later, which is a phone call nobody enjoys making or getting.

When you should not tile a tub surround, and should not hire me

I will talk you out of this when it does not add up. If your tub is a cheap acrylic unit you already plan to rip out in two years, do not spend good money tiling around something on its way to the curb. And if the walls around the tub are soft, flexing, or already water-damaged, tile is not the fix. That is a repair to the wall first, and only then does tile go on. Beautiful tile over a rotten wall is just a nicer-looking problem.

Skip me too if you have a one-piece fiberglass tub-and-wall unit and only want it freshened up, because tiling over that is a dicey job and often not worth the money. A straight swap is usually the smarter spend there. But if you have a proper tub against three bare or gutted walls and you want it done so it looks sharp and never leaks, that is exactly the job I want. I will waterproof it like it is my own bathroom, because the downstairs ceiling I am protecting might as well be.

At a glance

A tub surround is a wet wall. Waterproof the whole thing behind the tile before anything goes up.
Cement board is water-durable, not waterproof. Use a bonded membrane (ANSI A118.10) as the real barrier.
The bottom tile laps over the tub flange and does not touch the tub. Fill the tub-to-tile joint with flexible silicone, not grout, so it cannot crack (per the TCNA Handbook).
Dry-lay and plan around the valve, spout, and niche so you avoid ugly slivers of tile at the ceiling or fixtures.
Porcelain (0.5% water absorption or less) is a safe wet-wall pick. Bed each tile to 95% coverage (ANSI A108.5). Natural stone works but wants sealing.
Tiling the tub apron makes it look custom, but keep plumbing access. Free written estimate after I see the tub.

Common questions

How do you tile around a bathtub?

Waterproof the three walls first with a bonded membrane over the backer board, sealing every corner. Then the bottom row of tile is set lapping over the tub flange, not resting on the tub, and the tile is laid out so the awkward cuts land at the bottom and corners. The joint where the tile meets the tub is filled with flexible silicone, and everything else is grouted normally.

Do you grout or caulk where the tile meets the tub?

Caulk, specifically a flexible silicone. A bathtub flexes as it fills and drains, and rigid grout in that joint cracks and lets water into the wall. The TCNA Handbook calls for a flexible joint wherever tile meets the tub. If you see a hard grout line there, it is only a matter of time before it cracks.

What goes behind the tile in a tub surround?

A waterproofing layer, and it is the most important part of the whole job. Cement board is a good backer for tile but it is not waterproof, so on top of it we run a bonded waterproof membrane rated to ANSI A118.10, sealing the corners and seams. That membrane, not the board, is what keeps water out of the framing. Tile then goes over the membrane.

Can you tile over an existing tub surround or a fiberglass unit?

Usually it is not worth it. A one-piece fiberglass tub-and-wall unit flexes and is not built to hold tile, so tiling over it is a dicey job that often fails. If the existing surround is a solid, sound tiled wall it can sometimes be worked with, but most of the time the honest answer is to strip it back, waterproof properly, and start clean, or swap the unit.

What is the best tile for a bathtub surround?

For a wet wall, porcelain is a safe bet, because at 0.5% water absorption or less it holds up and is easy to keep. Classic subway is timeless and affordable, big format gives you fewer grout lines, and natural stone like marble looks stunning but needs sealing. Whatever the tile, it should be bedded to 95% coverage so there are no hollow spots for water to collect.

Can you tile the front of a bathtub, the apron?

Yes, and it looks great, turning a plain drop-in tub into something that reads built-in and custom. The one rule is access. If there is plumbing behind the apron that might need reaching, we leave a discreet access point or build a tiled panel that comes off, so nobody has to break the tile later to get at a valve.

Tiling a bathtub is a job where the difference between a wall that lasts twenty years and one that rots in two is entirely behind the tile, in the waterproofing and the flexible joint where tile meets tub. Get those right, plan the layout, bed the tile fully, and pick a tile that suits how you live, and you get a tub surround that looks sharp and stays sealed. Cut the invisible corners and you get a pretty wall with a wet secret. If you are in the DMV and want yours done right, here is how I handle tile installation and the wet-area waterproofing that a tub surround lives on. Still choosing the look? Here is shower wall tile for material ideas, and if you go with stone, the tiling sealer guide on keeping it protected. The membrane and coverage standards behind a watertight surround come from ANSI and the TCNA Handbook. Ready when you are: get a free estimate and I will waterproof it like the ceiling downstairs is my own. Tiling a bathtub: make the wall behind the tile as good as the tile, and the only thing your tub overflows with is compliments.
