Tile Shower Pan: The Floor That Decides If Your Shower Leaks

Nick PapazovOwner and installer, MCode LLC

August 11, 2026

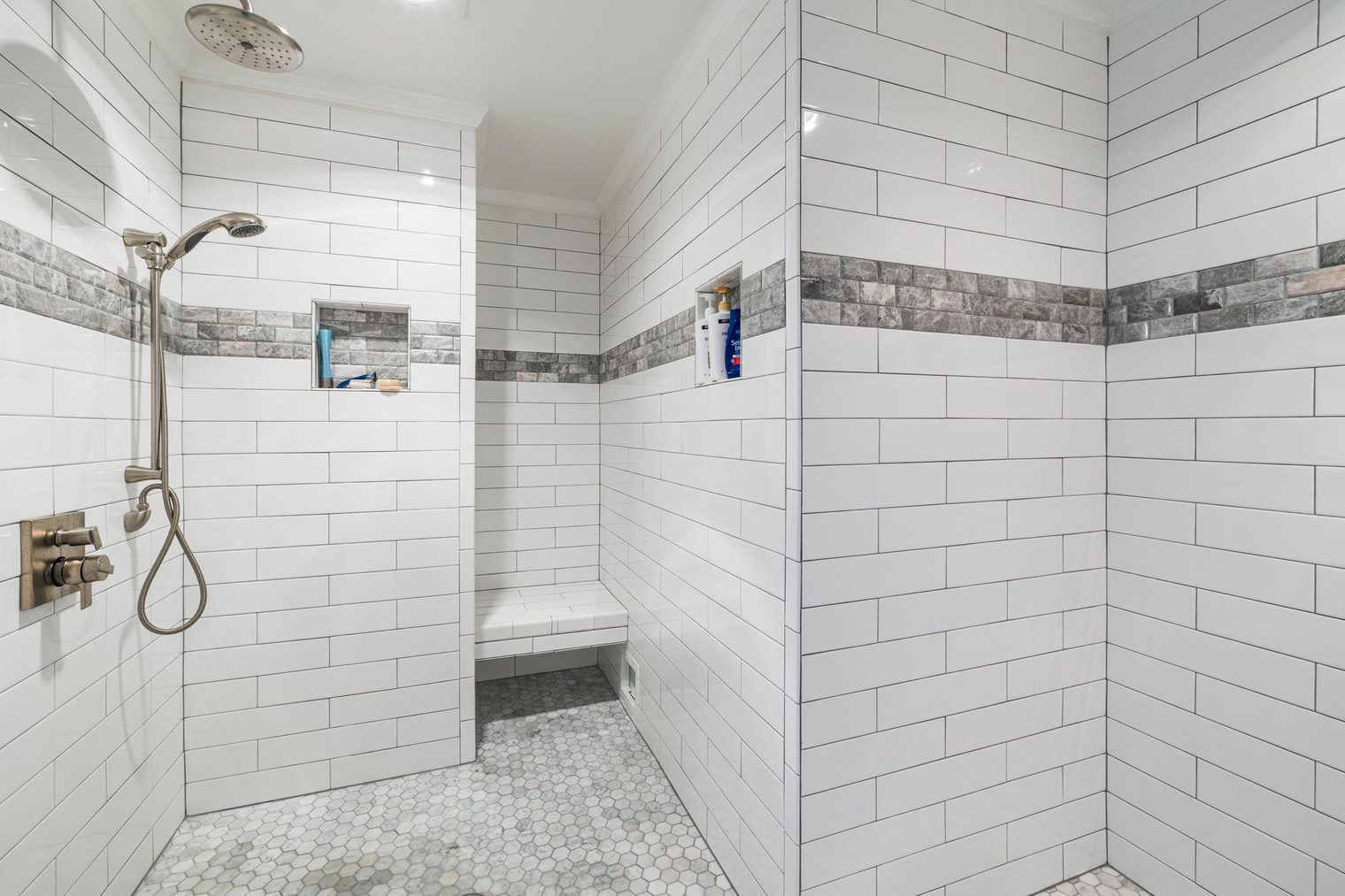

Tiled walk-in shower with a hexagon mosaic floor sloped to the drain and a built-in bench — Photo by Curtis Adams on Pexels

A tile shower pan is the floor of your shower, the sloped, waterproof tray that sends every drop to the drain instead of into your ceiling. It is also the part nobody photographs and everybody underestimates. (Nobody has ever complimented a shower pan. It is thankless work down there.) I am Nick, I have built these across the DMV since 2006, and here is the honest version of how a tile shower pan works, why it leaks when it is rushed, and when you should just call someone who does it all day.

What a tile shower pan actually is, and why the tile is not the waterproofing

Start with the bad news: tile is not waterproof, and neither is grout. Water walks straight through a grout line the way it walks through a strainer, because a grout line is basically a firm sponge with a job title. So the thing keeping your shower dry is not the tile you spent a weekend choosing. It is the pan underneath: a sloped base with a waterproof layer bonded to it, hidden under the mosaic. The tile is the raincoat. The pan is the roof.

That is the one idea to hold onto. When people say shower pan and tile in the same breath, the tile is the part you see and the pan is the part that saves your ceiling. Get the pan right and a cracked grout line is a cosmetic annoyance you fix on a Sunday. Get it wrong and that same little crack is a slow leak into the room below, quietly, for years.

How to build a shower pan so it drains: the slope is the whole trick

Here is how a shower pan gets built, minus the mystery. The floor of the pan is packed mortar, a stiff sand-and-cement mix we shape by hand, sloped so every point runs downhill to the drain. The magic number is 1/4 inch of fall for every foot of floor, which is the tile industry standard (ANSI A108.02, for anyone who likes a reference). That gentle tilt is the entire trick. Water is lazy, but it always obeys gravity, so a proper slope carries it to the drain and out.

Let the floor go flat and you get water holding a grudge: a puddle in the corner that sits there long after you have towelled off, slowly growing something you do not want to name. A flat shower floor is not a small mistake, it is a daily one. So I check the fall with a level on every pan I build. (Yes, I measure it. No, I cannot help it.)

The shower pan liner, and the membrane that does all the quiet work

On or under that sloped base sits the waterproofing, and this is where showers are won or lost. There are two ways to do it. The old-school way is a shower pan liner, a rubber or vinyl sheet folded into the base and buried in the mortar, sloped down to weep holes at the drain. The modern way is a bonded membrane, a thin waterproof skin (a sheet or a painted-on coat) stuck right to the surface the tile sits on, built to ANSI A118.10, meaning it is rated to hold water behind tile.

Whichever way it goes, it has to be installed as one matched system: the membrane, the seam tape, the corners and the drain all from the same playbook, so they bond and warranty together. That is not me being fussy, it is how the manufacturers test them. If you want the long version, Schluter and the TCNA Handbook both lay out what a proper pan assembly looks like.

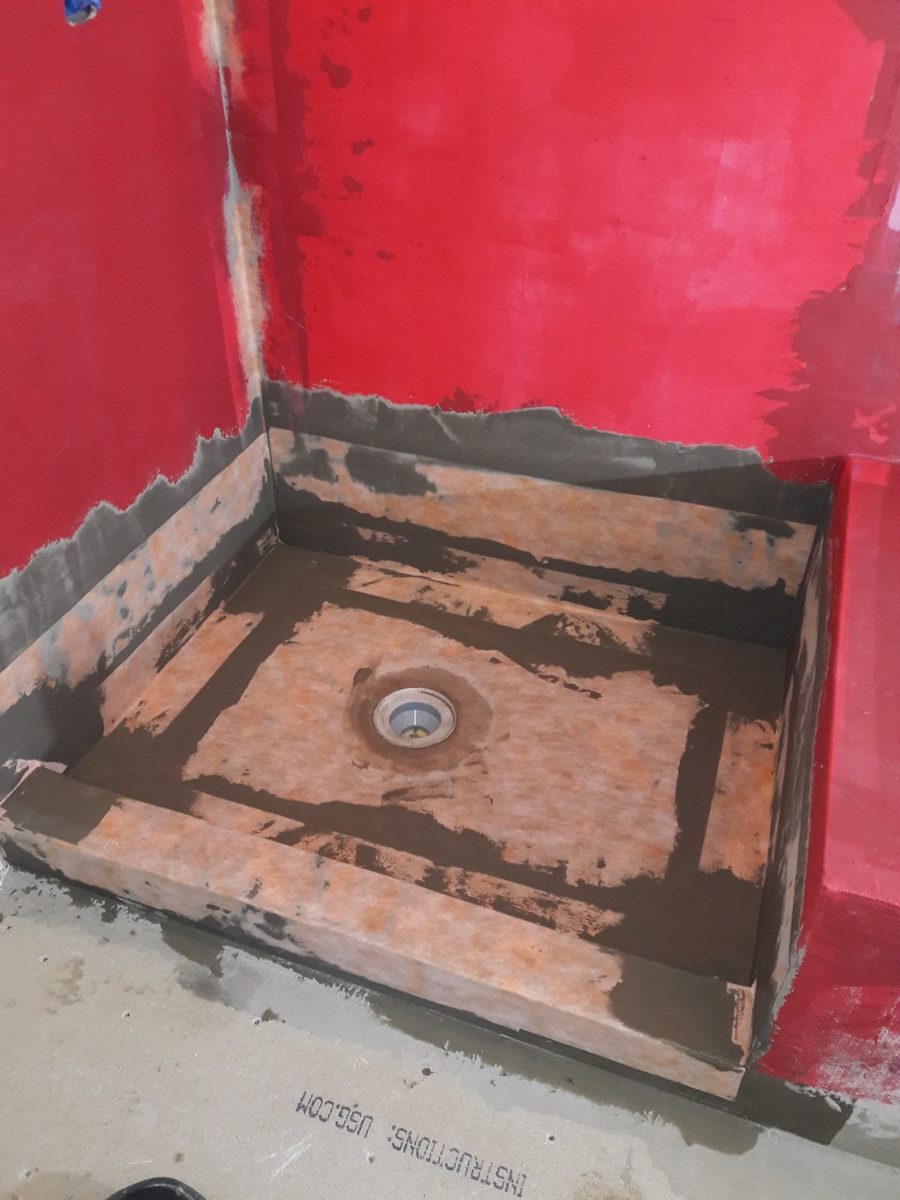

Shower pan waterproofed with a bonded membrane over the sloped base before any tile shower pan work — One of mine, mid-job. The ugly layer that keeps your ceiling dry.

The 24 hour flood test: the most boring day, and the one that saves the most

Before a single tile goes on, the pan gets tested with the oldest trick in the trade: plug the drain, fill the base with water, mark the level, and walk away for 24 hours. Then check the ceiling in the room below. Dry means the waterproofing holds. A drop on the level, or a stain downstairs, means we found the problem now instead of after the tile is in.

Here is the one opinion I will stand on: skipping the flood test is the worst trade you can make on a shower. It costs one day. It is the only moment a waterproofing mistake is free to fix, before there is tile, grout and your whole Saturday sitting on top of it. The building code asks for it (IRC P2503.6), and any installer who waves it off is telling you something. It is the most boring day of the job and the one that saves the most money.

Shower pan flood test with the drain plugged and the base filled with water to check for leaks — A flood test on one of my pans. Boring to watch, cheap insurance.

Why shower floors use tiny tiles, and the curb that keeps water in

Ever wonder why shower floors are almost always little tiles when the walls get the big ones? It is not a style choice, it is geometry. A large tile is flat and stiff, so it cannot follow a floor tilting toward the drain from every direction without cracking or leaving gaps. A 2 inch mosaic can. All those tiny grout lines let the floor bend around the slope, which is exactly why a tile shower pan wears mosaic while the wall gets the large stuff.

Then there is the curb, the little step you climb over to get in. It is a small wall that gets waterproofed just like the pan and pitched very slightly back toward the drain, so any water that reaches it rolls back in instead of dribbling onto your bathroom floor. Think of it as a speed bump for water. A curb built without waterproofing is just a sponge you step over twice a day.

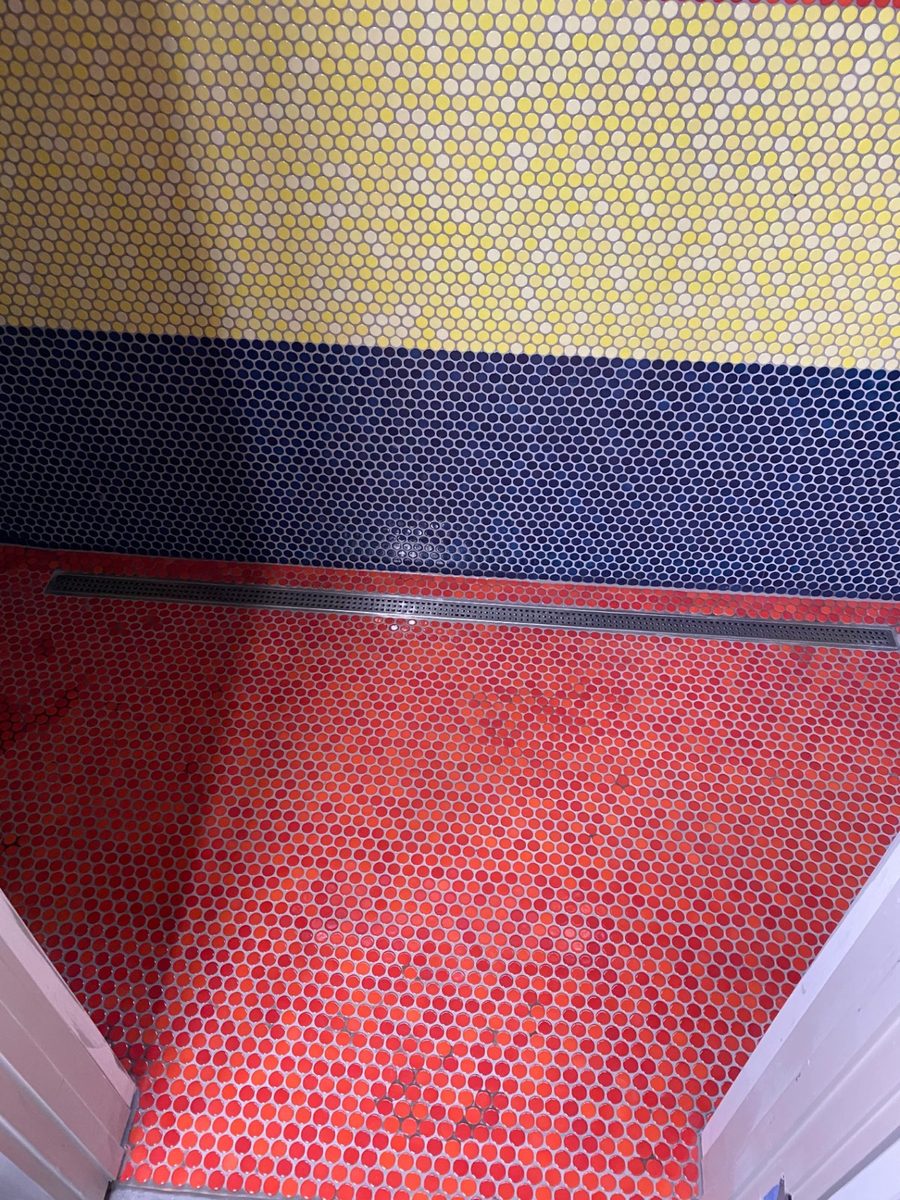

Penny round mosaic shower floor sloped to a linear drain, the small tile following the slope — A finished mosaic pan of mine. Small tile, on purpose.

When you should not call me for a shower pan

Now the part other contractors skip: when you do not need me. If you already have a solid acrylic or fiberglass shower pan and it is not leaking, you do not need a tile pan at all. Tile the walls, keep the base, save the money. If your grout is tired but the pan underneath is dry and draining, that is a regrout, not a rebuild, and anyone pushing a full teardown is selling, not helping.

A tile ready shower pan, meaning a pre-sloped foam base you waterproof and tile straight over, is also a genuinely good call on a lot of jobs. It is faster than hand-packing mortar and dead accurate on the slope, and I am happy to fit one when it suits the room. And if the real trouble is a soft, rotten subfloor under the shower, that gets fixed first, because no pan on earth is stronger than the floor it sits on.

At a glance

A tile shower pan is the sloped, waterproof floor hidden under your shower tile
The floor must fall 1/4 inch per foot to the drain (ANSI A108.02) or water pools
Waterproofing goes on the pan itself; tile and grout are not waterproof
A 24 hour flood test (IRC P2503.6) is the only cheap time to catch a leak
Small mosaic tile is used because it can follow the slope; big tile cannot
Get it right once and the pan quietly outlasts the tile on top of it

Common questions

How do you waterproof a shower pan?

You waterproof the sloped base itself, not just the tile. Either a shower pan liner buried in the mortar bed and sloped to weep holes at the drain, or a bonded membrane (a sheet or a painted-on coat) stuck to the surface under the tile, built to ANSI A118.10. Then it gets a 24 hour flood test before any tile goes down.

Do you need a liner under a tile shower pan?

You need waterproofing, and a liner is one way to get it. A traditional pan uses a rubber or vinyl liner in the mortar. A modern pan uses a bonded membrane instead and skips the separate liner. Both are fine. What is not fine is a mortar bed with no waterproofing at all, which is most of the leaking showers I get called out to.

Can you tile directly on a shower pan?

On a pre-sloped, waterproofed pan, yes, the tile goes straight onto it with thinset, the cement glue that bonds tile down. On a bare mortar base with no membrane, no, because tile and grout are not waterproof and the water needs somewhere safe to go first. The pan has to be sloped and sealed before the first tile.

What is a tile ready shower pan?

It is a pre-formed foam base that already has the slope to the drain built in. You waterproof it, then tile straight over it. It saves the hours it takes to hand-pack and slope a mortar bed, and the slope is accurate out of the box. On a lot of jobs it is the smart choice.

Why is water pooling on my shower floor?

Almost always the slope. A shower floor has to fall 1/4 inch per foot toward the drain (ANSI A108.02). If it is flat, or it dips in the wrong spot, water sits there instead of draining. A puddle that never leaves means the pan under the tile was not sloped right, and that is a rebuild, not a mop.

How long does it take to build a shower pan?

The building is quick. The waiting is not. Packing and sloping the mortar, letting it cure, waterproofing, then a full 24 hour flood test all take real time before any tile goes on. I give you a real timeline in the written estimate instead of a number off the top of my head.

A tile shower pan is not glamorous, but it is the single thing standing between your shower and the room below it. Slope it, waterproof it as one system, flood test it, and it will quietly outlast the tile on top. See how I handle shower waterproofing and tile installation, or if you are planning the whole build, start with tiling a shower and tiling a niche in a shower. Got a pan that already leaks? That is a tile repair call. Ready to go? Get a free estimate and I will look at the floor before we plan a single tile. Build the pan right, and the only thing that ever reaches your ceiling is the light fitting.
